TDG27 COMP2CV
TDG27 COMP2CV
Couldn't load pickup availability

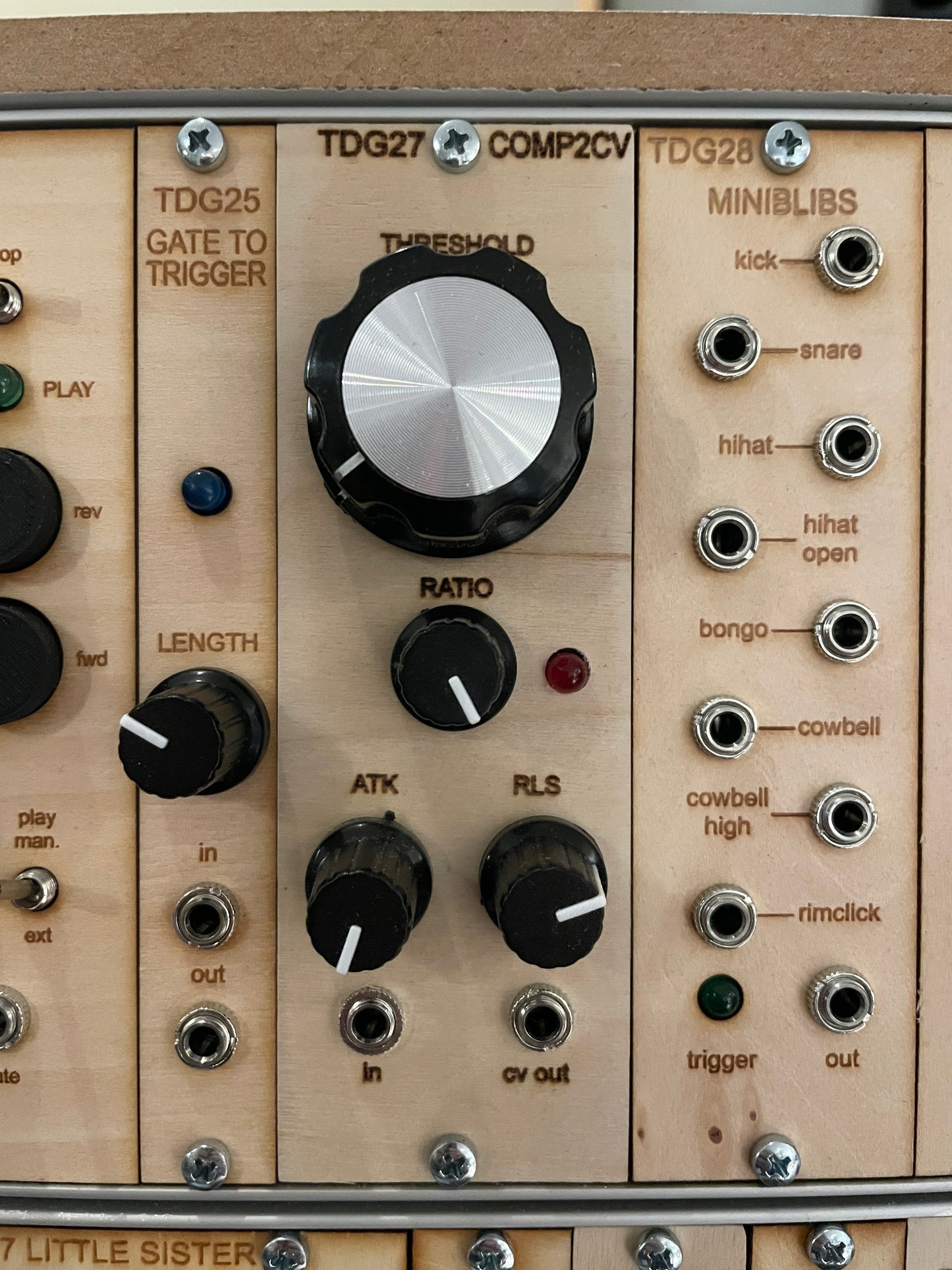

Feed an audiosignal and get a control voltage out; this unit is effectively an a sidechain of an audio compressor which sends out a controle voltage rather than audio. Feed the CV into a VCA to use it as a true compressor, but this module is even more fun when used to control pitch, PWM or modulate an LFO.

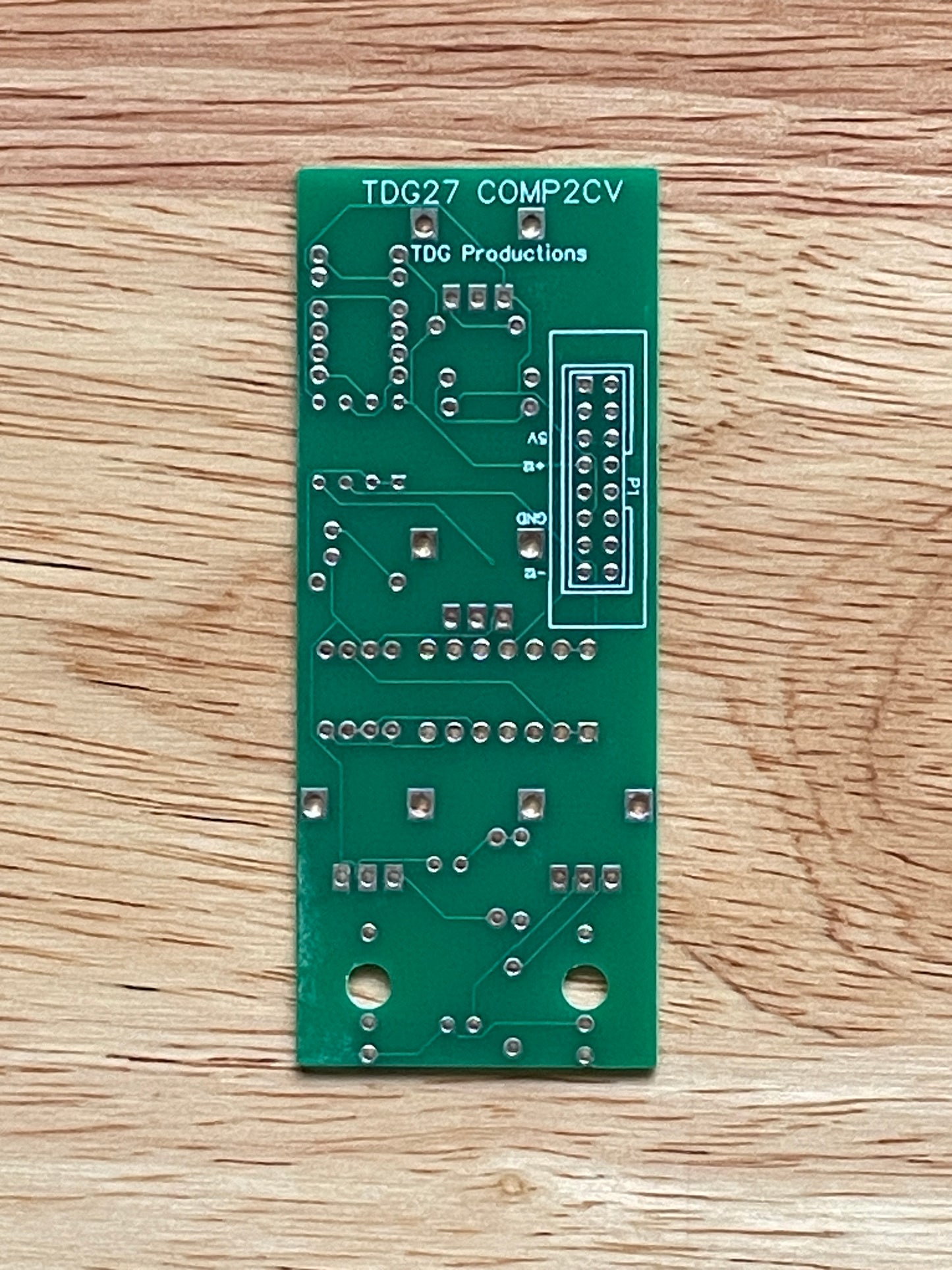

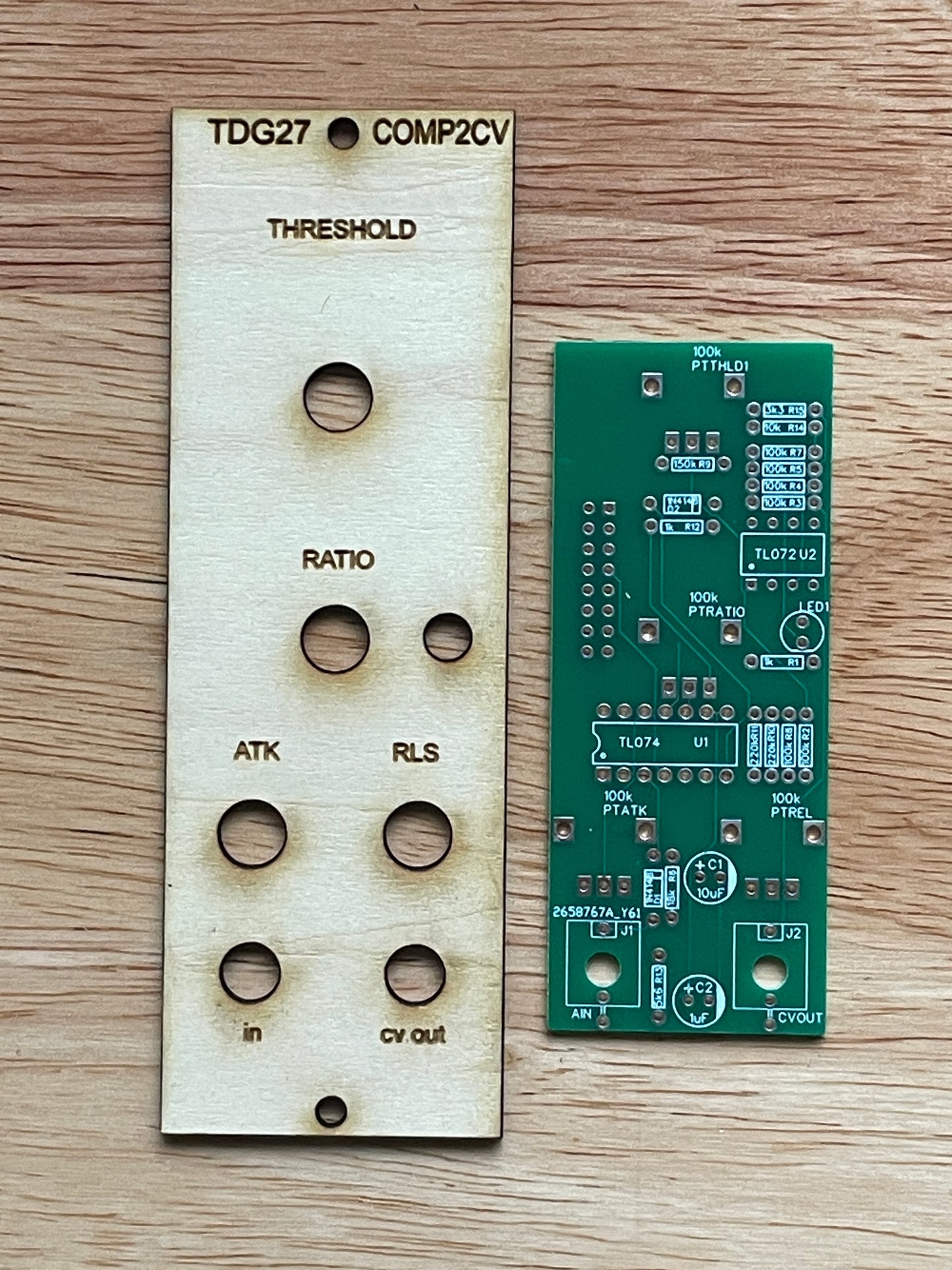

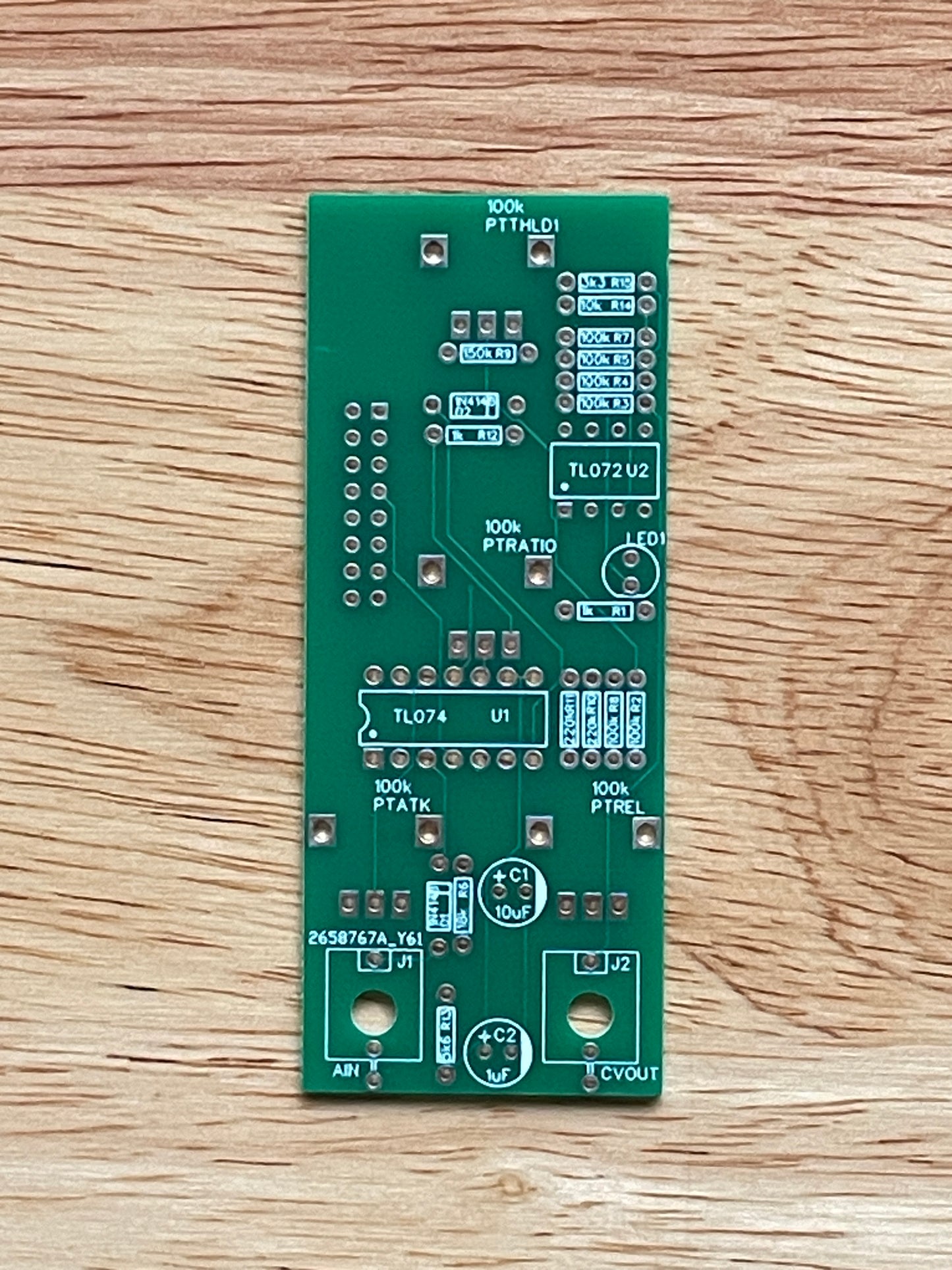

Package includes: PCB and frontplate only.
BOM
|
ID |
Name |
Designator |
Footprint |
Quantity |
|
1 |
150k |
R9 |
R_AXIAL-0.3 |
1 |
|
2 |
100k |
PTTHLD1,PTATK,PTRATIO,PTREL |
POTIALPHA9 |
4 |
|
3 |
10uF |
C1 |
CAP-D6.3×F2.5 |
1 |
|
4 |
1uF |
C2 |
CAP-D6.3×F2.5 |
1 |
|
5 |
1N4148 |
D1,D2 |
DO-35_BD2.0-L4.0-P8.00-D0.5-FD |
2 |
|
6 |
AIN |
J1 |
THONKICONN |
1 |
|
7 |
CVOUT |
J2 |
THONKICONN |
1 |
|
8 |
LED5mm |
LED1 |
LED-TH_BD5.0_RED |
1 |
|
9 |
1k |
R1,R12 |
R_AXIAL-0.3 |
2 |
|
10 |
100k |
R2,R3,R4,R5,R7,R8 |
R_AXIAL-0.3 |
6 |
|
11 |
18k |
R6 |
R_AXIAL-0.3 |
1 |
|
12 |
220k |
R10,R11 |
R_AXIAL-0.3 |
2 |
|
13 |
5k6 |
R13 |
R_AXIAL-0.3 |
1 |
|
14 |
10k |
R14 |
R_AXIAL-0.3 |
1 |
|
15 |
TL074 |
U1 |
TL074 |
1 |
|
16 |
TL072 |
U2 |
DIP8 |
1 |
|
17 |
3k3 |
R15 |
R_AXIAL-0.3 |
1 |
|
18 |
Powerconnector |
P1 |
HDR-8X2/2.54 |
1 |
